Enterprise Active Directory Hardening

Tech Stack
Windows Server 2019 · PowerShell · Group Policy · LAPS · VirtualBox
Repo

Project Overview

Active Directory is the backbone of 90% of Fortune 1000 networks. Securing it requires moving beyond default configurations to a defensive architecture.

This project involved designing, deploying, and hardening a complete enterprise Active Directory environment from scratch. Simulating a 1000+ user organization, this lab was built to implement modern security best practices, including a tiered administration model, defense against lateral movement, and automated auditing.

Network Architecture

The environment was built using Oracle VirtualBox to create a multi-server, segregated network architecture.

  • Segregation: A segregated internal network (172.16.0.0/24) protected by a Domain Controller acting as a NAT router/firewall.
  • Core Services: AD DS, DNS, DHCP, and IIS Web Server.
  • Clients: Windows 10 Enterprise endpoints managed via Group Policy.

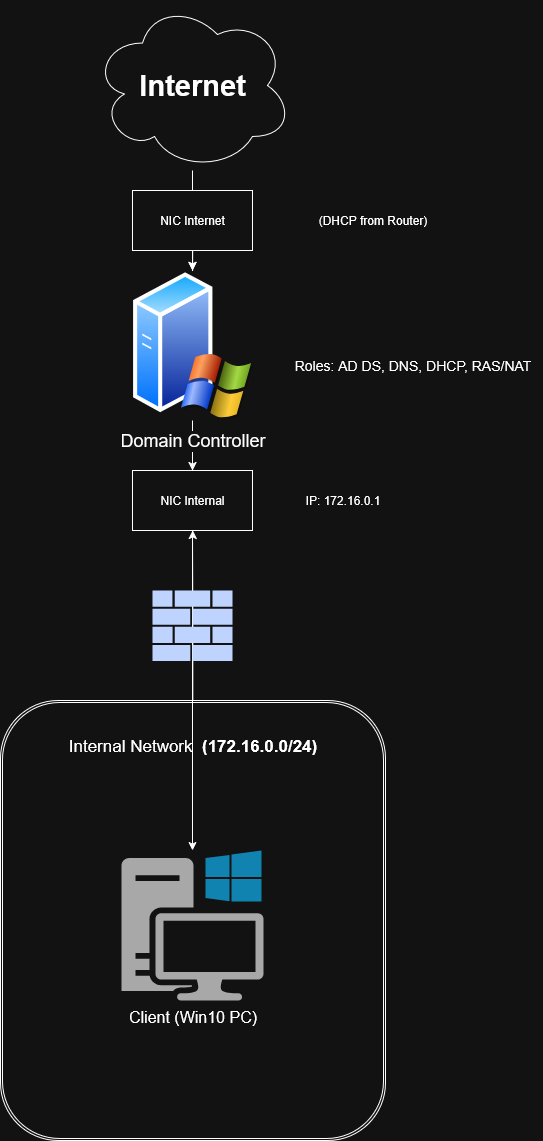

Network Architecture DiagramNetwork Architecture Diagram

Key Features & Implementation

1. Enterprise Scale Simulation

A common issue with home labs is the lack of "noise." To simulate a production environment, I utilized PowerShell scripting to populate the directory with over 1,000 realistic user objects, organized into a structured Organizational Unit (OU) hierarchy. This allowed for realistic testing of Group Policy inheritance and query speeds.

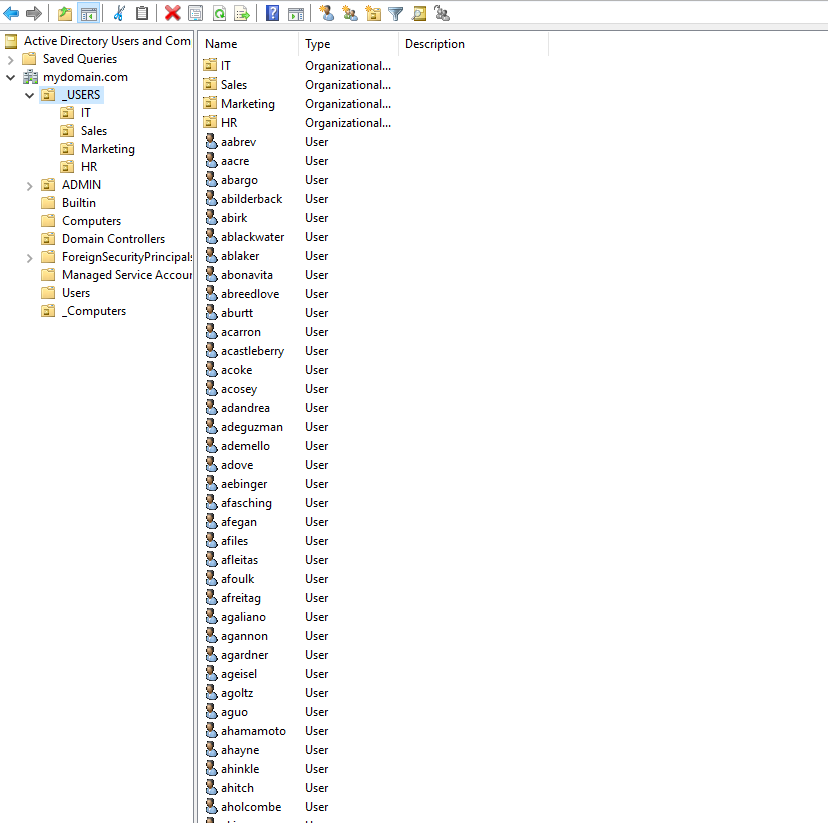

Active Directory Users and Computers populated with 1000+ usersActive Directory Users and Computers populated with 1000+ users

2. Security Hardening (Tiered Admin Model)

To mitigate credential theft and "Pass-the-Hash" attacks, I implemented a Tiered Administration Model:

  • Tier 0 (Domain Admins): Credentials restricted to Domain Controllers only.
  • Tier 2 (Helpdesk): Granted local admin rights on workstations but strictly blocked from logging into servers via GPO.
  • LAPS (Local Administrator Password Solution): Deployed LAPS to randomize local administrator passwords on workstations, rotating them every 30 days.

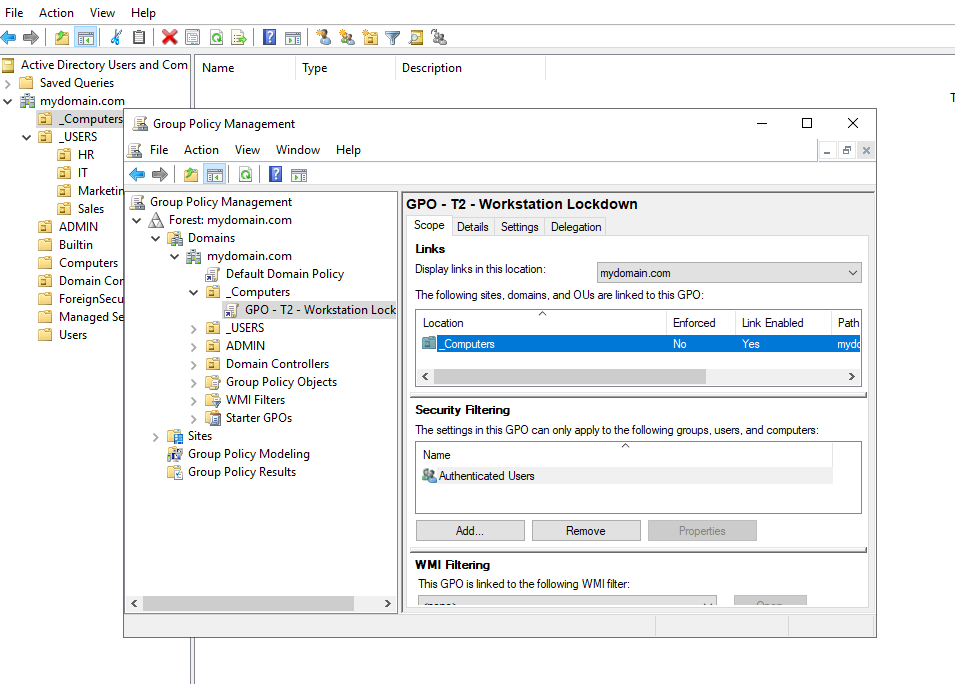

Group Policy configuration for Tiered AdministrationGroup Policy configuration for Tiered Administration

3. Automated Security Auditing

I developed a custom PowerShell tool (Invoke-ADSecurityAudit.ps1) to continuously monitor the environment's health.

The script runs daily via Windows Task Scheduler, scans for misconfigurations (e.g., stale accounts, non-expiring passwords, Empty Groups), and generates a hosted HTML dashboard on the local IIS server.

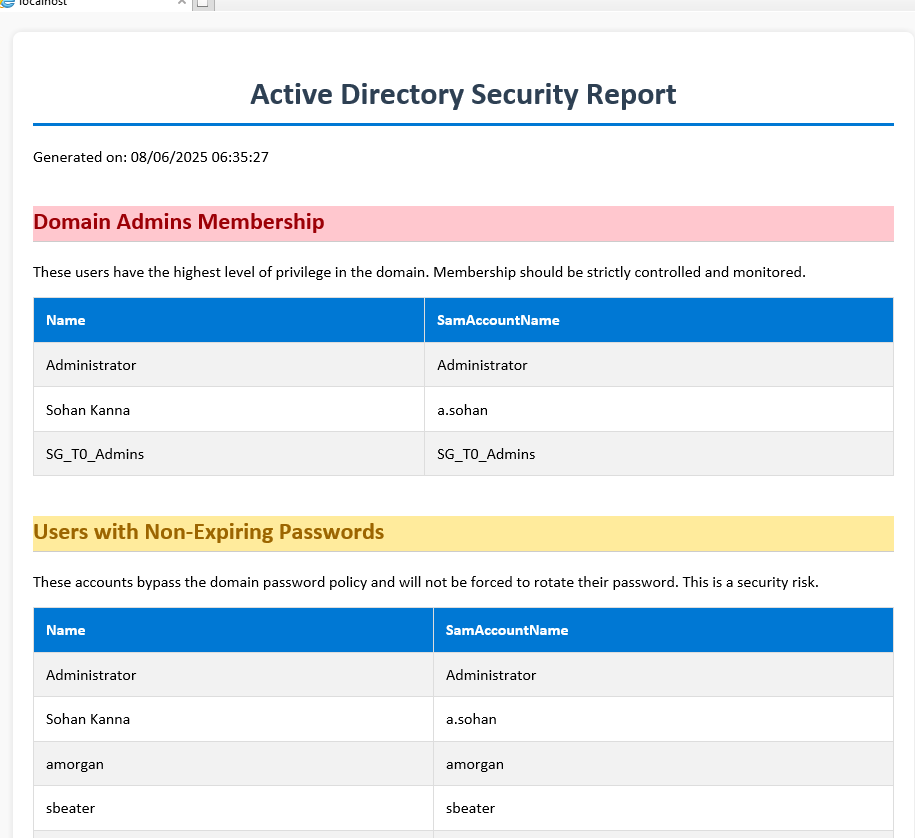

Automated HTML Security DashboardAutomated HTML Security Dashboard

Challenges & Troubleshooting

Group Policy: Legacy vs. Modern

The Challenge: An initial attempt to grant helpdesk admin rights using the legacy "Restricted Groups" policy repeatedly failed to apply correctly. The Fix: Through client-side diagnostics (gpresult /h), I migrated the configuration to Group Policy Preferences (GPP). This provided more granular control and successfully applied the local admin rights without conflict.

SIEM Integration & Hardware Limits

The Challenge: A stretch goal involved integrating a Graylog SIEM on a Linux VM. The installation failed repeatedly with obscure service crashes. The Root Cause: After deep-diving into MongoDB logs and dependency requirements, I discovered an AVX CPU instruction set incompatibility between my host hardware and the required version of MongoDB. The Lesson: This underscored the importance of verifying hardware-level prerequisites when integrating modern security tooling into legacy or virtualized hardware.

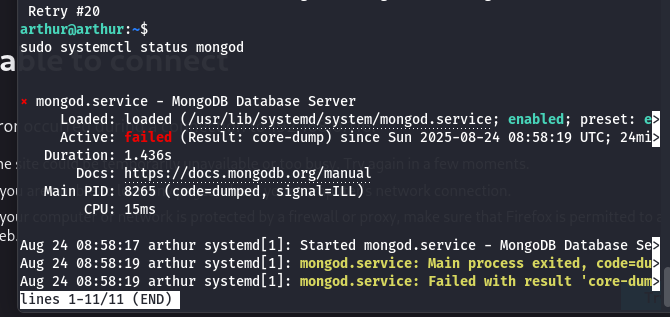

CPU Instruction Set Error DebuggingCPU Instruction Set Error Debugging
